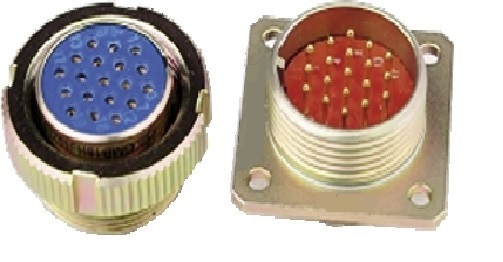

MP1 Series (МР1)
Miniature circular electrical connectors are sealed, current intensity 5A, operating voltage 140V, used in AC circuits.
Technical documentation Datasheet MP1 Series
MP1 Series
MP1 Series Miniature Electrical Connectors
MP1 – miniature circular electrical connectors are sealed, current intensity 5A, operating voltage 140V, used in AC circuits.
Specifications
• Ambient temperature: – 60°C ~ +150°C
• Vibration acceleration: 1~2500Hz 15g
• Impact acceleration: repeatedly 35g
• Operating Voltage: 140V
• Contact working current: 0.5A
• Insulation resistance:
– ≥1000MΩ normal temperature
– ≥20MΩ high temperature
– ≥1MΩ high humidity
• Contact resistance: ≥10mΩ
• Mechanical wear resistance: plug/unplug 250
• Validity period: 15 years
• Specifications: 3E0 204 061JT
Technical details
| Number of contacts | Total current load (A) | Number of contacts | Total current load (A) |
| 10 | 5 | 50 | 25 |
| 19 | 9.5 | 76 | 38 |
| 30 | 15 | 102 | 51 |
