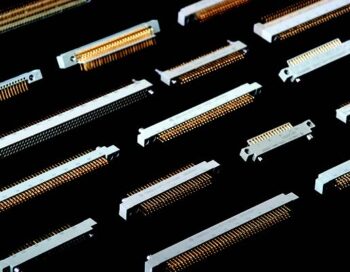

MDXT9 Series (ГРПМ1)
Rectangular Electrical Connector for Printed Circuit Boards
This series of electrical connectors are rectangular electrical connectors for printed circuits. They are used for circuit connections in electronic and radio devices. They can connect circuit boards to device circuits and between circuit boards. It can be completely interchangeable and connected with Russia ГРПМ1 series electrical connectors.
Technical characteristics
• Ambient temperature: -60°C~+85°C
• Vibration acceleration: 5Hz~4000Hz 300m/s2
• Impact acceleration: 350m/s2 multiple times, 1500m/s2 once
• Working voltage: ≤ 250V
• Contact body current: ≤2.0A
• Contact resistance:
device-circuit board ≤0.005Ω
circuit board- circuit board ≤0.008Ω 122
contact ≤0.007Ω
• Insulation resistance:
≥ 1000MΩ (normal)
≥ 50MΩ (115°C)
• Contact body temperature rise: ≤ 30°C
• Working life: 1000 times of plugging and unplugging
• Technical information: KEO.364.006ТУ
