X4 Series

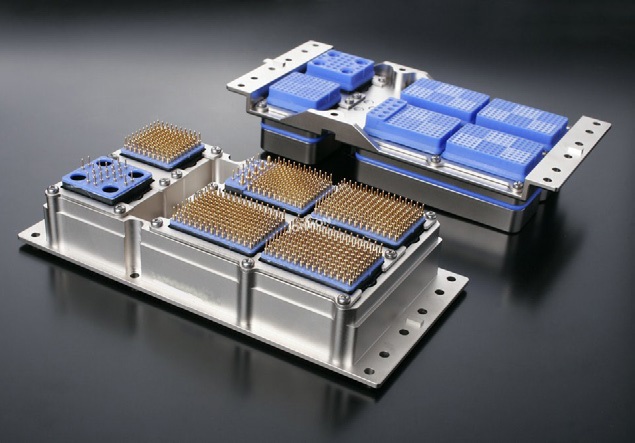

X4 Series (ARINC600) Metallic Rack and Panel Connector (СНП345, СКП345)

• In accordance with ARINC600
• Module structure, differential P/Ns which are formed by mating the insulator with the shell can meet the differential customers’ requirements
• Mixed power, high speed, high frequency and optical contacts, signal integration transmission can be achieved
• Transmission speed for 8# high speed and differential contact can be 1.65 Gbps
• Applicable to aerospace and military rack, environment resistant
• Enterprise standard: Q/21EJ719-2009

Contact type
X4 series metallic rack and panel connector can install the power, signal, high speed, high frequency and coaxial contacts at the same time and multiple signal integration transmission can be achieved. #8 contact cavities can install #8 high speed differential contacts or #8 coaxial contacts. #16 contact cavities can install #16 coaxial, power or optical contacts. #12 contact cavities can install #12 coaxial, power or optical fiber contacts.

Application
X4 series connectors are applicable to transmit the electrical signal, RF signal, optical signal, differential signal and bus signal between equipment and rack. It is applicable to the severe environment and reduces the quantities of the interfaces and cable assembly to meet the requirements of the integration, modularization and standardization. The common usage method is shown as follows.
