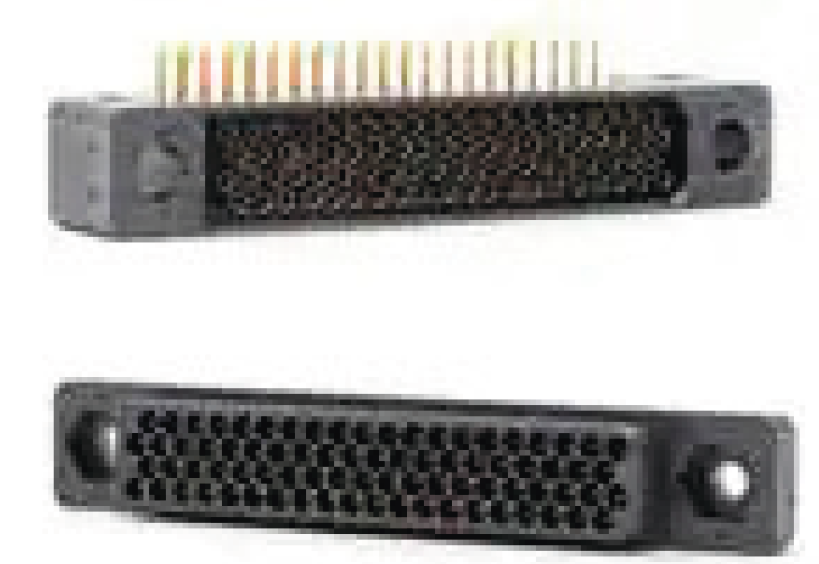

CHSB Series Rectangular plastic shell electrical connector
Technical documentation Datasheet CHSB Series
Main features
1) The contact piece adopts brush type contact piece
2) Contact spacing 1.778mm×1.524mm
3) Plug-in life up to 100,000 times
Main technical performance
Mechanical life | 10 000 times |
Operating temperature | -65°C-+125°C |
Rated operating current | 2A |
Insulation resistance | Normal temperatures5000MQ |
Dielectric withstand voltage | Sea level: AC 750V; Altitude 21336 meters: AC 250V |
Random vibration | GJB1217 Method 2005 Condition V, Letter H
Frequency 50^ 2000Hz, power spectral density 0.6g2/Hz, 3 vertical directions, 4h in each direction |
Influence | GJB1217 Method 2004 Condition G, acceleration 980m/s2 |
Damp | GJB1217 Method 1002, Type II |
Differential data transfer rate | 6.25Gbps |
